In today’s modern vehicles, safety features play a crucial role in ensuring a secure and convenient driving experience. One such feature that has become increasingly popular is the reverse camera, which provides drivers with a clear view of the area behind their vehicle while in reverse gear. The Ford Bronco, known for its ruggedness and versatility, also incorporates this invaluable safety tool.

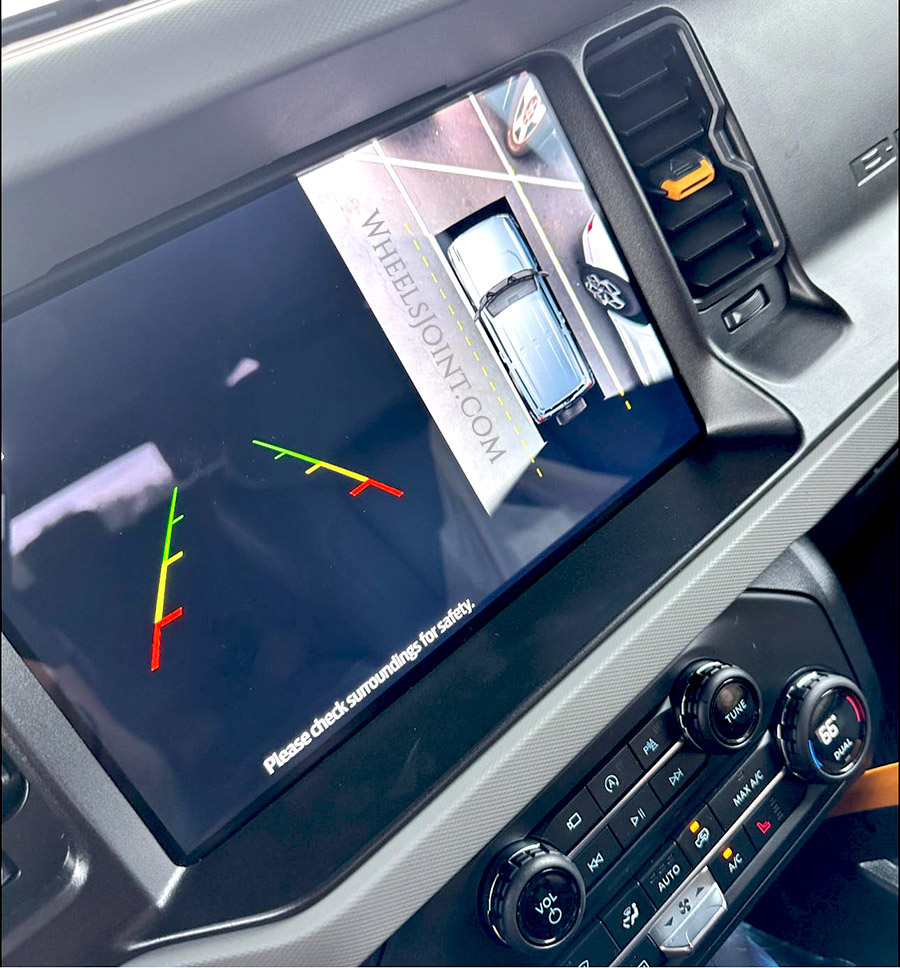

However, if you’re encountering issues with your Ford Bronco’s reverse camera, such as a blank screen or a distorted image, it’s essential to address the problem promptly to maintain optimal safety on the road. This article aims to guide you through the potential causes of a non-functional reverse camera on a Ford Bronco and provide some steps to troubleshoot and fix the issue.
From faulty connections to software glitches, a range of factors can contribute to the malfunction of your Ford Bronco’s reverse camera. Understanding these causes and learning the appropriate solutions will empower you to rectify the problem effectively.
Camera obstructed
One of the first steps in troubleshooting a non-functional reverse camera is to inspect the camera lens for any obstructions.

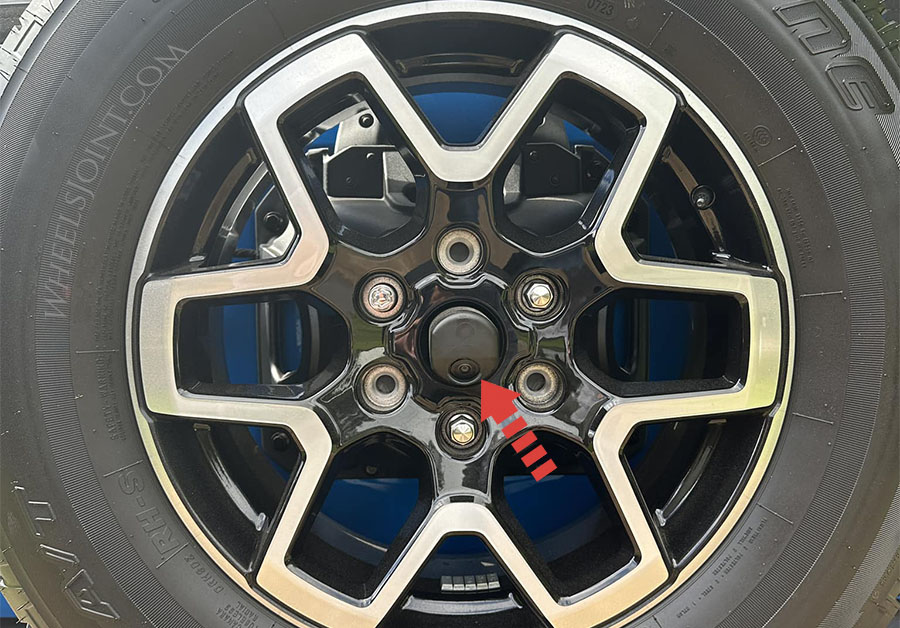

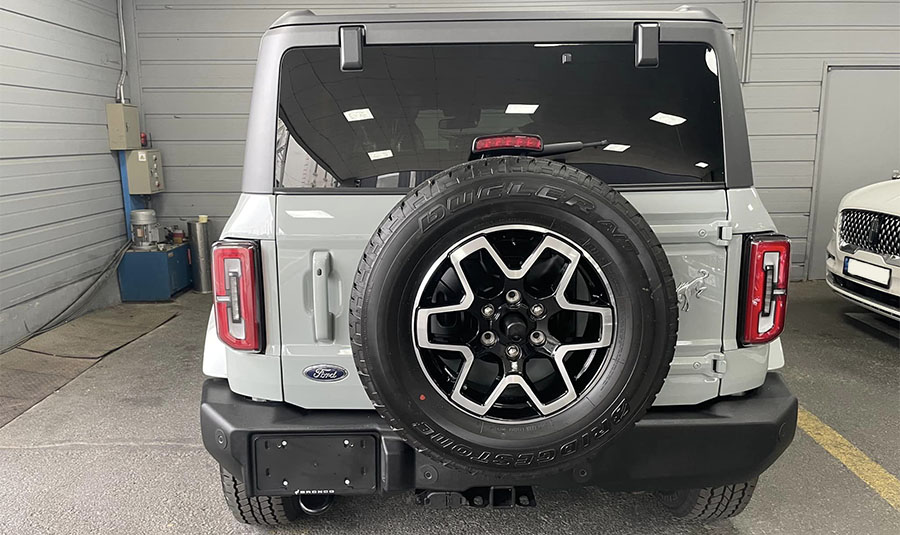

Locate the camera lens, which is positioned in the middle of the spare wheel.
Carefully examine the camera lens for any dirt, debris, or smudges that may be affecting its performance. These contaminants can significantly impair the camera’s ability to capture a clear image.
If there are any loose particles or debris on the lens, gently blow them away or use a soft brush to remove them. Be cautious not to scratch the lens during this process.
Broken wire
Faulty or loose wiring connections can often be the culprit behind a malfunctioning reverse camera.
Locate the wiring connections between the camera and the display unit. Ensure that all connections are secure, undamaged, and properly plugged in. If you notice any loose or damaged wiring, repair or replace it accordingly.

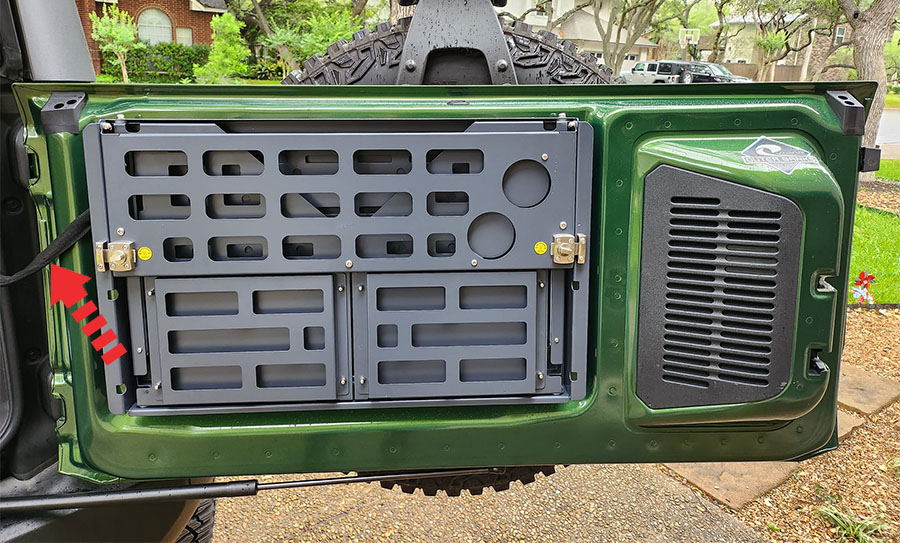

Damaged wiring harness on tailgate
A damaged wiring harness on the tailgate of your Ford Bronco can be the cause of a non-functional reverse camera. The wiring harness is responsible for carrying electrical signals from the vehicle’s electrical system to the various components on the tailgate, including the reverse camera. When the wiring harness becomes damaged, it can disrupt the flow of electricity and result in the reverse camera failing to function properly. Here are some key points to consider regarding a damaged wiring harness on the tailgate:
Impact of damage: The wiring harness on the tailgate is subjected to constant movement, flexing, and exposure to the elements. Over time, this can lead to wear and tear, causing the wiring insulation to crack, wires to break, or connections to become loose.
Symptoms of a damaged wiring harness: When the wiring harness on the tailgate is damaged, you may experience the following symptoms:
Non-functional reverse camera: The most noticeable effect of a damaged wiring harness is a complete loss of functionality in the reverse camera. The camera may not display any image or may show distorted or intermittent visuals.
Intermittent issues: In some cases, a damaged wiring harness may cause the reverse camera to work sporadically. The camera may function properly at times but fail to work on other occasions.
Additional electrical problems: It’s possible that other electrical components on the tailgate, such as the tail lights or license plate lights, may also be affected by the damaged wiring harness.
Inspection and repair: To address a damaged wiring harness on the tailgate, follow these steps:
a. Visual inspection: Carefully examine the wiring harness for any visible signs of damage, such as frayed wires, exposed conductors, or broken insulation. Pay particular attention to areas where the harness passes through openings or connectors, as these are vulnerable points.
b. Repair or replace damaged sections: If you identify any damaged sections of the wiring harness, you have a few options for repair. Depending on the extent of the damage, you can:
Repair small cuts or breaks: Use wire strippers to remove the damaged portion, strip the wire ends, and reconnect them securely using crimp connectors or soldering. Insulate the repaired area with electrical tape or heat shrink tubing.
Replace severely damaged sections: If the damage is extensive or the wiring harness cannot be repaired effectively, it may be necessary to replace the affected section entirely. Obtain a suitable replacement wiring harness and carefully install it, following the manufacturer’s instructions.
c. Secure and protect the wiring: After repair or replacement, ensure that the wiring harness is properly secured to prevent future damage. Use zip ties or harness clips to secure the wiring along its path and keep it away from moving parts or sharp edges.
Testing: Once the repair or replacement is complete, reconnect the tailgate panel and reattach the negative terminal of the battery. Test the reverse camera to confirm that it is functioning correctly. Engage the reverse gear and check if the camera displays a clear image on the infotainment system’s display.
If you are unsure about repairing a damaged wiring harness on your Ford Bronco’s tailgate, it is recommended to seek professional assistance. A qualified mechanic or Ford dealership can provide expert advice and perform the necessary repairs to ensure the proper functioning of the reverse camera and the overall electrical system.
Software Update
Performing a software update on your Ford Bronco’s infotainment system can help resolve potential software-related issues that might be causing the reverse camera to malfunction.
Ford vehicles typically offer two methods for software updates—over-the-air (OTA) updates or USB updates. Check your owner’s manual or visit the manufacturer’s website to determine which method is applicable to your Ford Bronco model.
Over-the-air (OTA) update:
Connect to a reliable Wi-Fi network: Ensure that your vehicle is within range of a stable Wi-Fi network. Park your Ford Bronco in an area with a strong Wi-Fi signal.
Access the infotainment system settings: On your Ford Bronco’s infotainment display, navigate to the settings menu. Look for an option related to software updates or system updates.
Check for updates: Select the option to check for software updates. Your vehicle will connect to the Wi-Fi network and search for available updates.
Download and install the update: If an update is available, follow the on-screen prompts to download and install it. Make sure your vehicle remains parked and the engine is running or the vehicle is in accessory mode during the update process. The installation may take some time, so be patient and do not interrupt the process.
Restart the infotainment system: Once the update is complete, restart the infotainment system as instructed. After the restart, check if the reverse camera is now functioning properly.
Recommended Video
If the software update does not resolve the issue with your Ford Bronco’s reverse camera, it is advisable to consult a qualified mechanic or contact a Ford dealership for further assistance. They can diagnose any underlying electrical or technical problems and provide the necessary support to resolve the issue effectively.
Broken camera
A broken camera can cause the reverse camera on your Ford Bronco to stop working. The camera itself is a critical component of the reverse camera system, responsible for capturing the video feed that is displayed on the infotainment screen when the vehicle is in reverse. If the camera is damaged or broken, it can lead to a loss of functionality.
A broken camera can result from various factors, such as impact, moisture damage, or wear and tear. It may exhibit visible signs of damage, such as cracks, shattered lenses, or detached components.
The most apparent sign of a broken camera is the absence of any image on the infotainment screen when the vehicle is put into reverse. Instead, you may see a black screen or a message indicating a camera malfunction.
Distorted or fuzzy image: In some cases, a damaged camera may still produce an image, but it may appear distorted, fuzzy, or unclear. This can make it challenging to see obstacles or objects behind the vehicle accurately.
Intermittent functionality: A partially broken camera may display intermittent behavior, working sporadically or functioning properly only under certain conditions. For example, it may operate correctly during daytime but fail to work at night.
Inspect the camera closely for any visible signs of damage, such as cracks, broken lenses, or loose connections. Ensure that there is no debris or dirt obstructing the camera lens.
If the camera is irreparably damaged, a replacement camera will likely be required. Obtain a compatible camera designed specifically for your Ford Bronco model. Follow the manufacturer’s instructions to install the new camera correctly.
Ford Bronco recall due to reverse camera fault
Ford has recently issued a recall for a total of 47,046 Bronco SUVs manufactured between the 2021 and 2022 model years. The reason behind this recall is a potential issue with the vehicles’ 8-inch center display screens, specifically related to their backup cameras. According to Ford, there is a possibility that the camera image may continue to be displayed even after the vehicle has completed its backing-up maneuver. This non-compliance with Federal Motor Vehicle Safety Standards (FMVSS) number 111 has prompted the recall.
The problem primarily occurs when the vehicle is in 4-Low mode, which is commonly used during off-road driving. To rectify the issue, Ford is offering owners two solutions, both of which are free of charge. Owners can choose to download an over-the-air (OTA) software update themselves or visit a Ford dealership to have the update installed. OTA updates have become increasingly common in modern vehicles with built-in wireless connectivity. Other automakers such as Tesla, GM, Mercedes-Benz, and Stellantis have also utilized OTA updates to address product recalls.
The specific vehicles affected by the recall are the 2021-2022 Ford Bronco SUVs equipped with an 8-inch center display. Ford will notify owners of the recall by mail, starting from December 19, 2022. Additionally, owners can contact Ford directly at 866-436-7332 for further information or assistance.
To check if their vehicle is subject to any open recalls, owners can visit the website of the National Highway Traffic Safety Administration (NHTSA). By entering their car’s 17-digit vehicle identification number (VIN), they can determine if any recalls need to be addressed. It is advisable to regularly check for recalls, as automakers frequently issue them for various older vehicles.
The NHTSA campaign number assigned to this specific recall is 22V825, while Ford has designated it as recall number 22C27. It is crucial for affected owners to promptly address the recall to ensure the proper functioning and compliance of their vehicles with safety standards.
